ZDEM DFN¶

Discrete fracture network (DFN) generator for ZDEM discrete element simulations: multi-set stochastic networks with seeded reproducibility, hash-grid-accelerated particle–fracture tagging, and preview rendering.

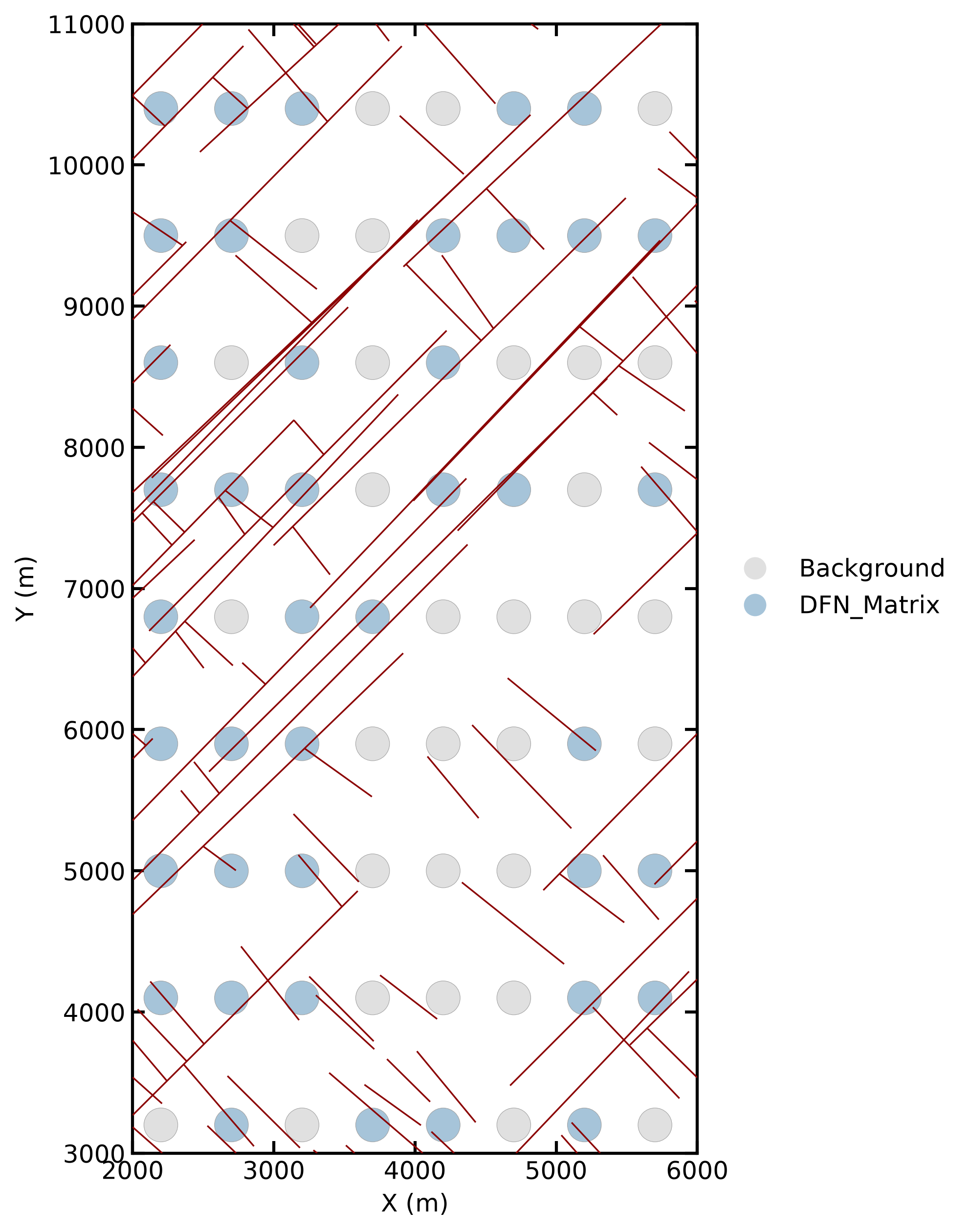

dfn_preview.png rendered from synthetic demo data

Install¶

pip install git+https://github.com/Phoenix0531-sudo/ZDEM_DFN.git
# or clone and install from source:
#   git clone https://github.com/Phoenix0531-sudo/ZDEM_DFN && pip install .

Quick start¶

# bundled synthetic demo (not laboratory data):
python -m zdem_dfn --input examples/demo_case --output outputs/demo_case --seed 42

# inspect without creating output:
python -m zdem_dfn --input examples/demo_case --output outputs/demo_case --dry-run

The output directory contains ini_xyr_dfn.dat and dfn_preview.png; the source file is preserved. See Usage and Data format for the compatibility batch interface and input details.

All images on this site are generated from synthetic demo data — never laboratory measurements.

Start here¶

Usage — CLI reference, fracture-set configuration, examples.
Data format — ini_xyr.dat fields, units and output layout.
Code reference — auto-generated API docs.
